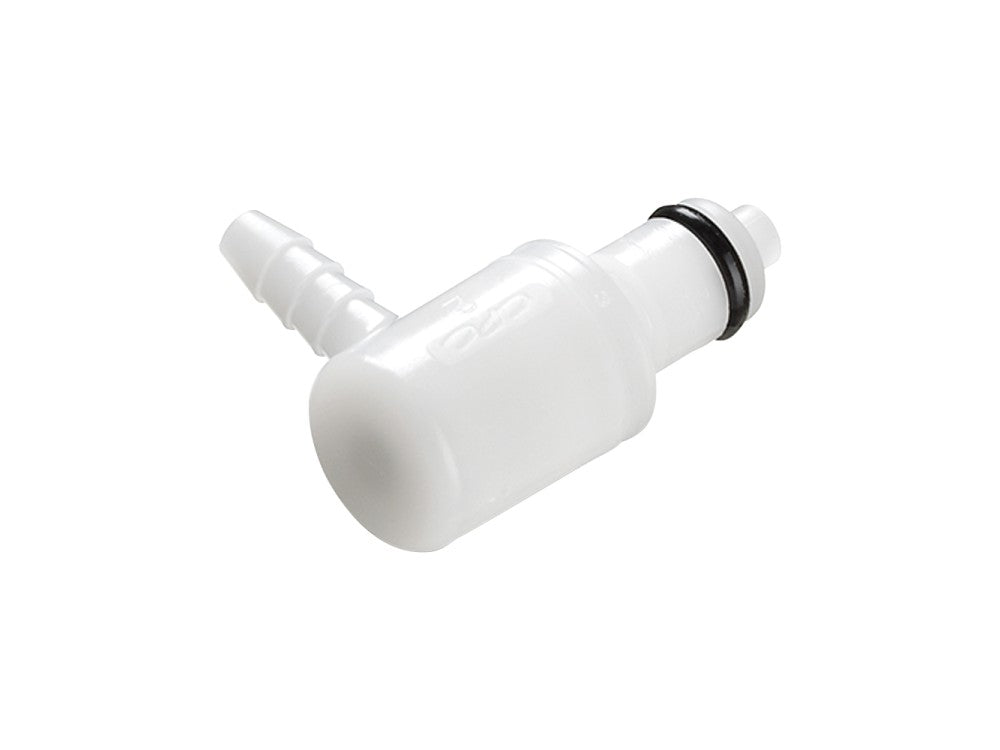

CPC Coupling insert elbow

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose, food, beverage and condiment dispensing applications. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use, equipment servicability and manufacture. PMC NSF parts are listed under the criteria of the NSF/ANSI Standards. These couplings offer the flexibility of multiple configurations and terminations and mate with both MC metal and PMC12 polypropylene couplings.

Specifications

• Pressure: Vacuum to 120 psi, 8.3 bar
• Temperature: -40°C to 82°C continuous
• Materials Main components and valves: Acetal
• Valve spring: 316 stainless steel
• External springs and pin: Stainless steel
• O-rings: Buna-N
• Color: Natural white
• Tubing range: 1.6mm to 6.4mm ID
